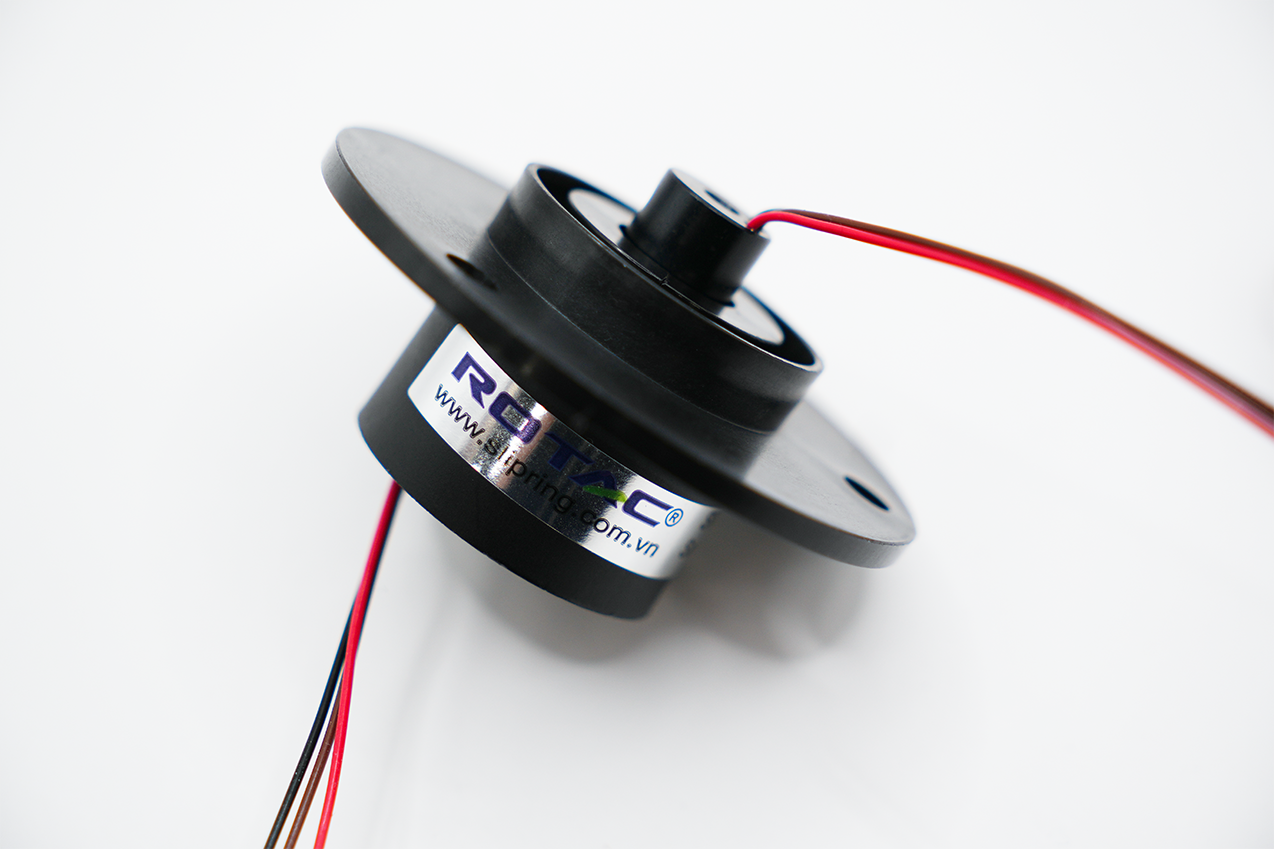

SRB04-03HA
Bore mounting Slip Ring Assemblies
Specification | |
Size | OD : 48.5 / ID : 3.0 / L1 : 24.5 / L2 : 30.5 |
No. of Ch. | 3 ~ 6 |
Voltage | 120 VDC / 120 VAC |
Current | 2 A |
Rotating speed | 100 RPM |
Mounting | Bore mounting |
Application | Index table, FA, Robotics, semiconductor line, cable reels, etc. |
advantage | Modular design, No lubrication required |

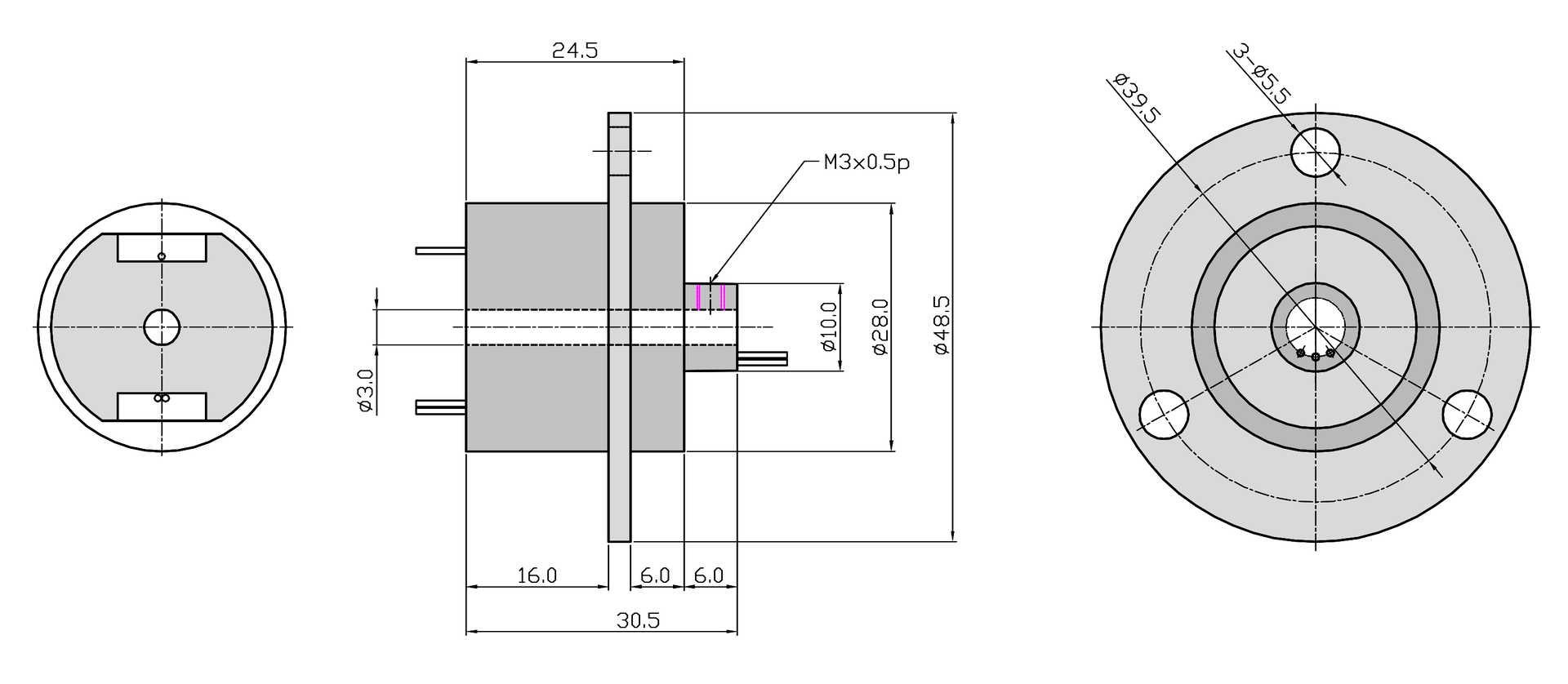

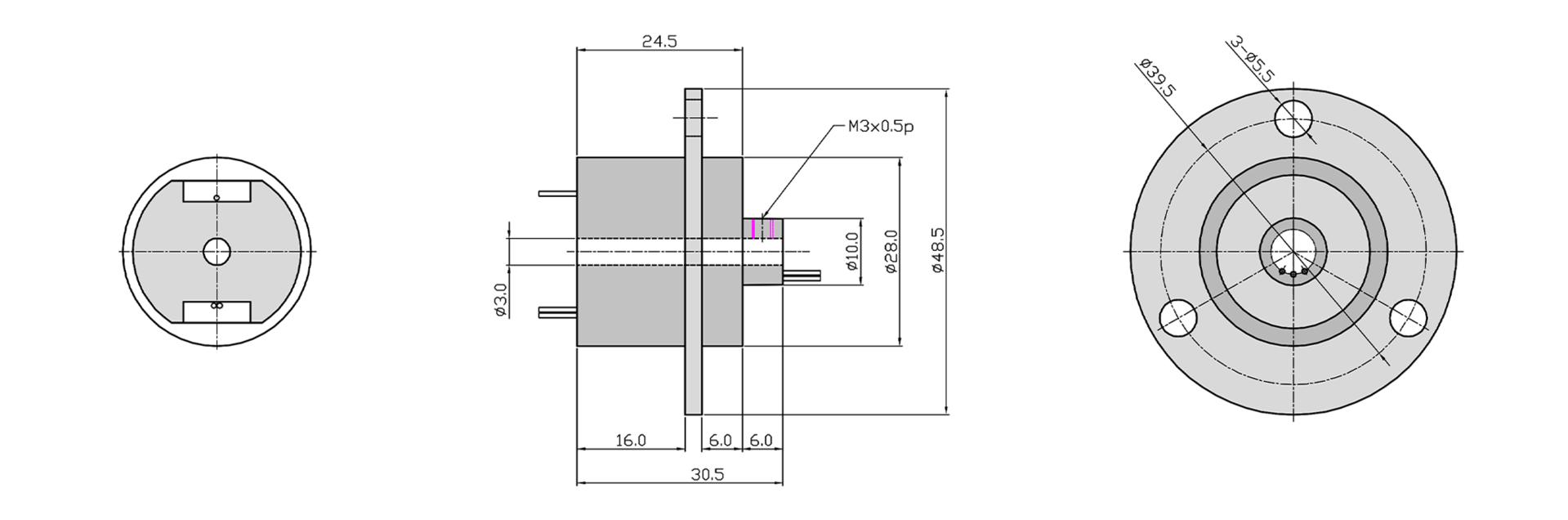

[Dimensions]
Part Number | Length "L" | |
"L1" | "L2" | |
SRB04-03HA | 24.5 | 30.5 |
