SRS2202 Series
Miniature Slip Ring Assemblies
Specification | |
Size | OD : 22 / L1 : 30.5- 36.5 / L2 : 39.0 - 45.0 |
No. of Ch. | 30 ~ 36 |
Voltage | 240 VDC / 240 VAC |
Current | 2 A |
Rotating speed | 100 RPM |
Mounting | End mounting |
Application | CCTV, Medical equipment, cable reels, robotics, etc. |
advantage | Transfers power & signal, compact size, Gold Vs Gold contact |

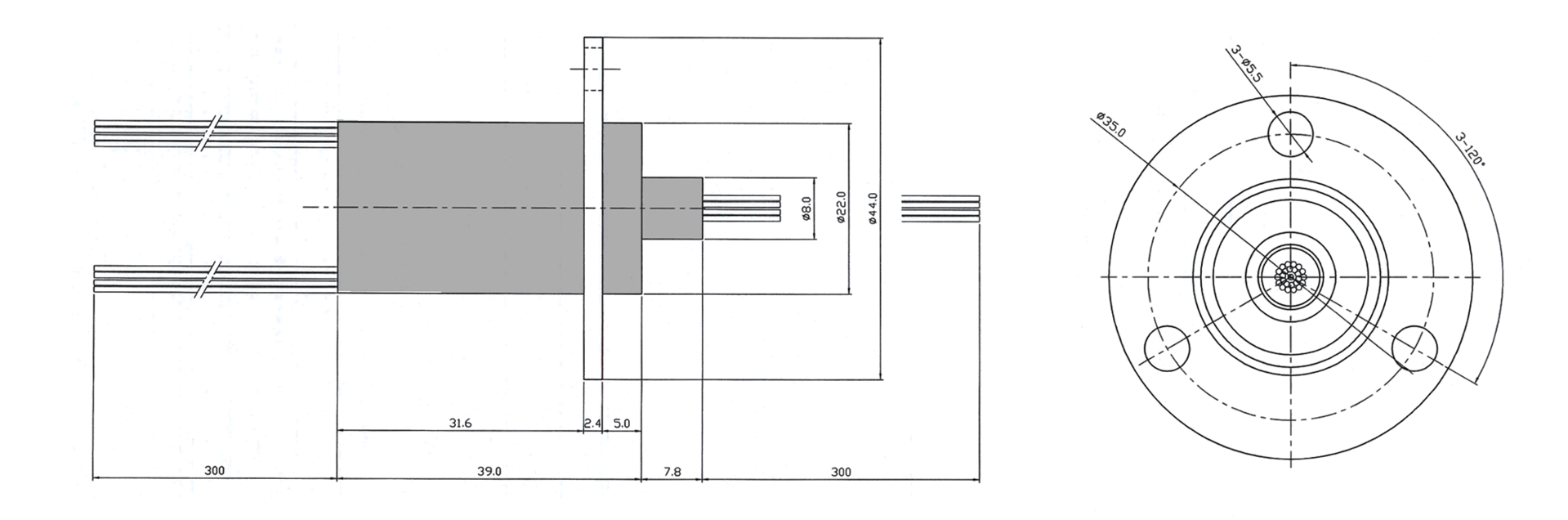

[Dimensions]
Part Number | Length "L" (mm) | |
"L1" | "L2" | |
SRS2202-30 | 30.5 | 39.0 |
SRS2202-36 | 36.5 | 45.0 |
