SRS1802 Series
Miniature Slip Ring Assemblies
Specification | |
Size | OD : 18 / L1 : 21 - 33 |
No. of Ch. | 6 ~ 24 |
Voltage | 240 VDC / 240 VAC |
Current | 2 A |
Rotating speed | 100 RPM |
Mounting | End mounting |
Application | CCTV, Medical equipment, cable reels, robotics, etc. |
advantage | Transfers power & signal, compact size, Gold Vs Gold contact |

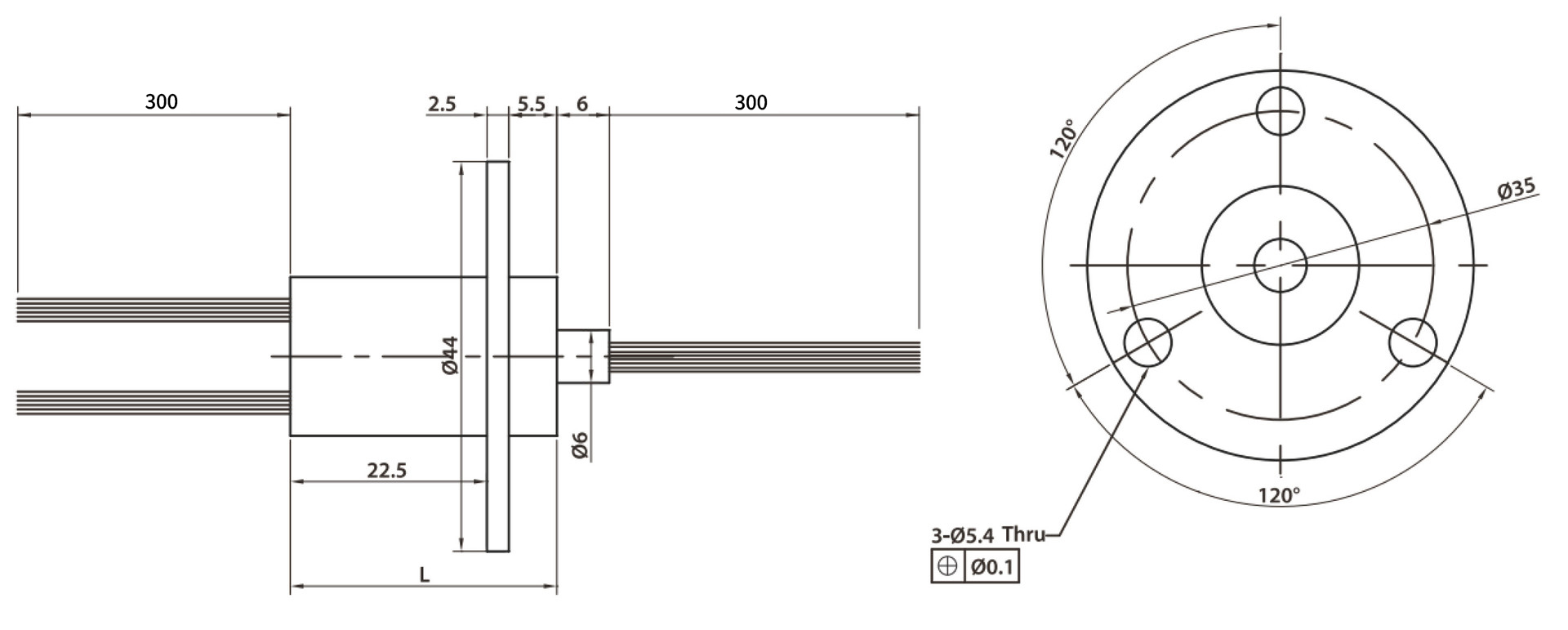

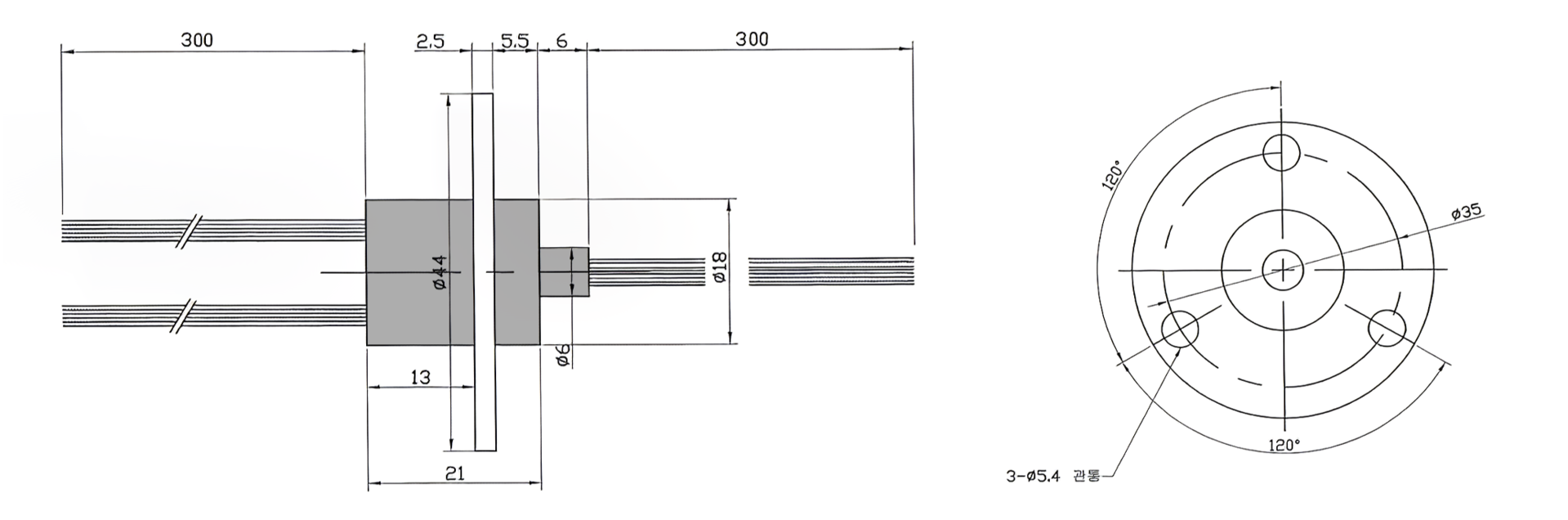

[Dimensions]
Part Number | Length "L" (mm) |
SRS1802-06 | 15 |
SRS1802-12 | 21 |
SRS1802-18 | 30.5 |
SRS1802-24 | 33 |
