Specification | |
Size | OD : 12 / L : 15-27 |
No. of Ch. | 6~18 |
Voltage | 240VDC/240VAC |
Current | 2A |
Rotating speed | 100RPM |
Mounting | End mounting |
Application | CCTV, Medical equipment, cable reels, robotics, etc |
advantage | Transfers power & signal, compact size, Gold Vs Gold contact |

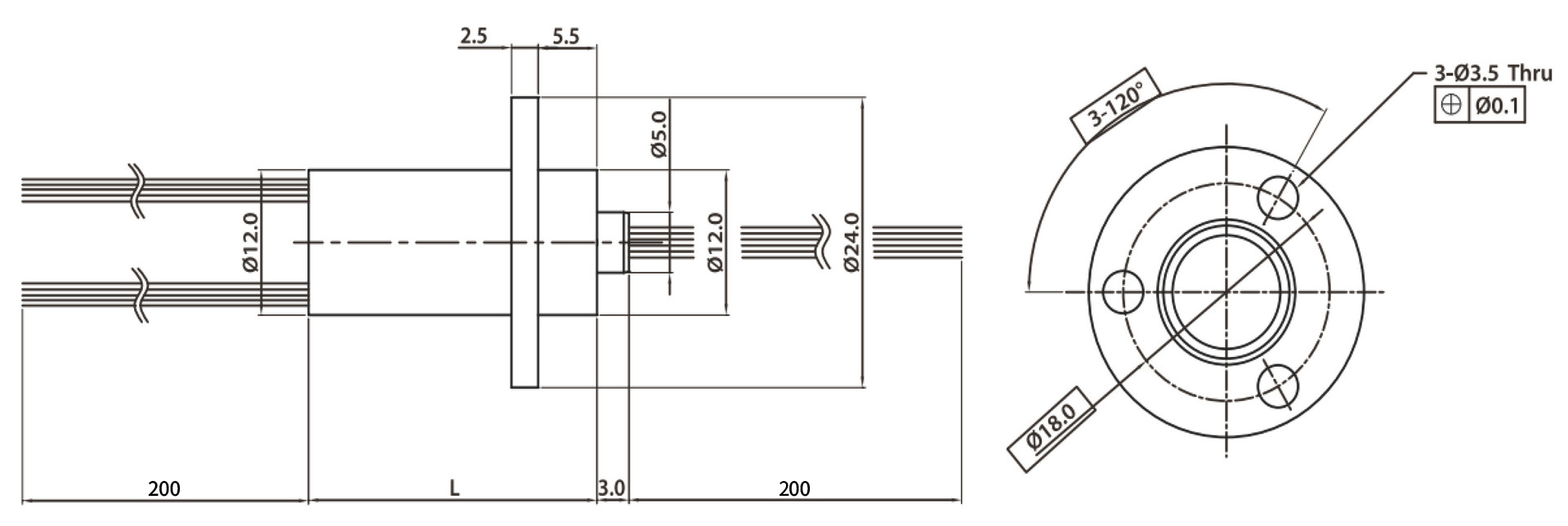

Part Number | Length "L" |
SRS1202-06 | 15mm |
SRS1202-12 | 21mm |
SRS1202-18 | 27mm |
