Specification | |

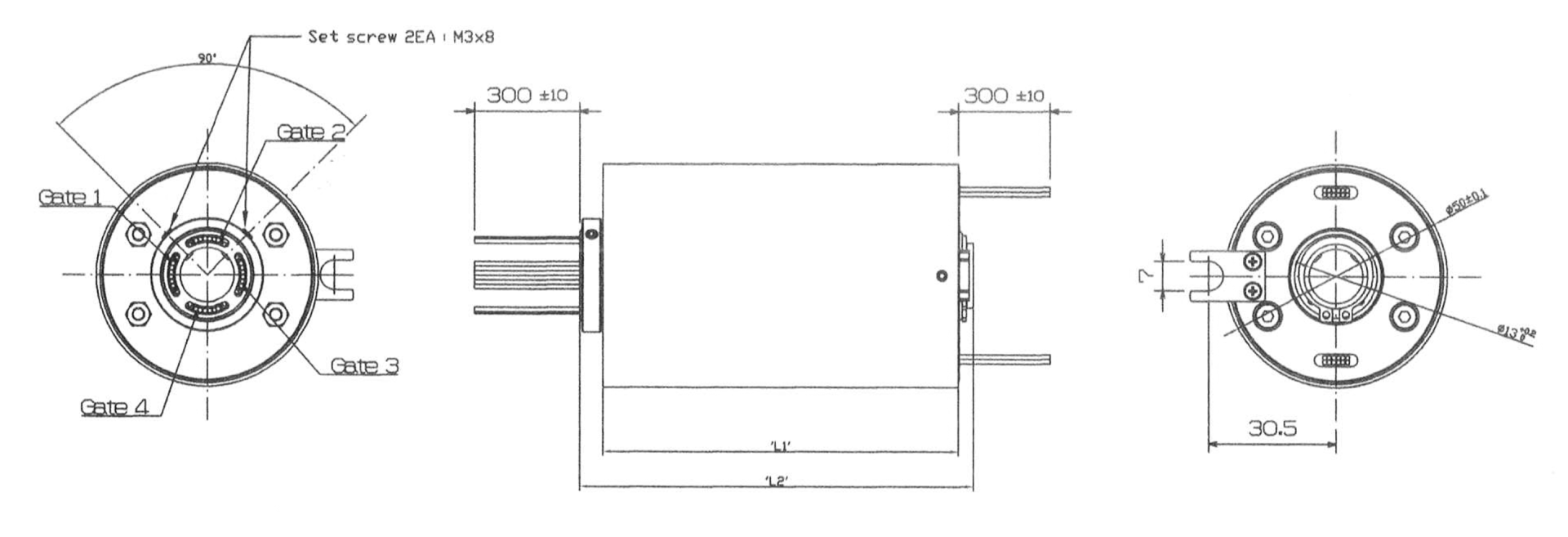

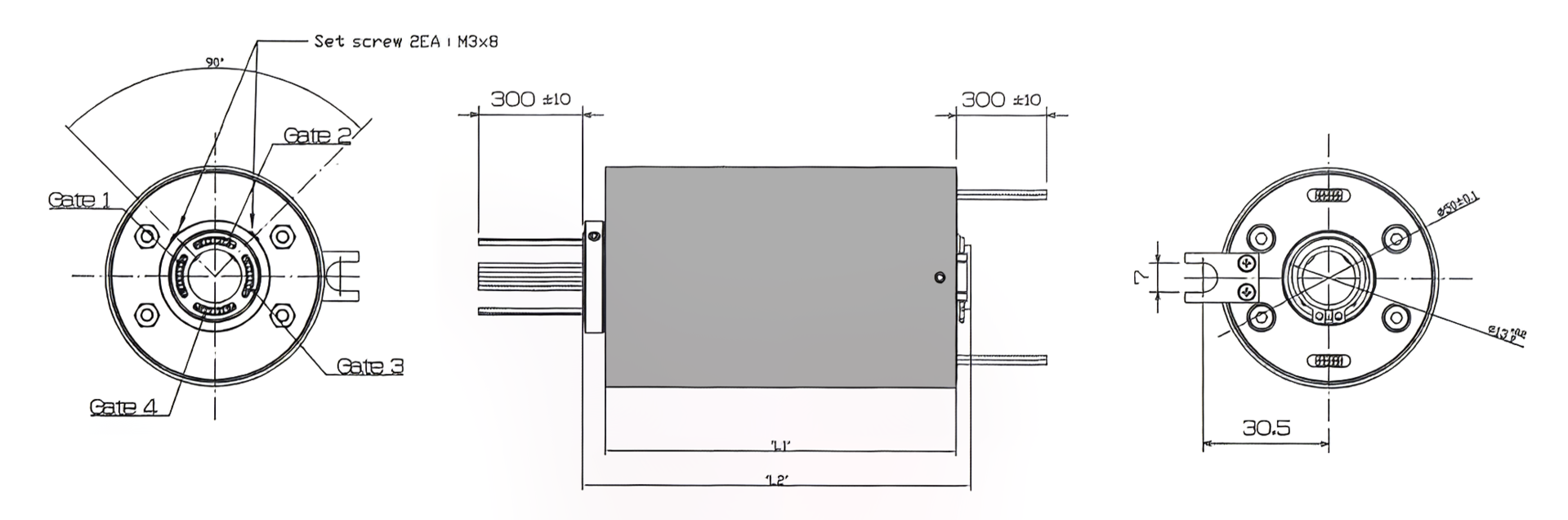

Size | OD : 50 / ID : 13 / L1 : 26.6-68 / L2 : 36.1-77.5 |
No. of Ch. | 06~24 |
Voltage | 210VDC/240VAC |
Current | 5A |
Rotating speed | 250RPM |
Mounting | Bore mounting |
Application | Index table, FA, Robotics, semiconductor line, cable reels, etc. |
advantage | Modular design, No lubrication required |
Part Number | Length "L" | |
"L1" | "L2" | |
SRB13-06 | 26.6 | 36.1 |
SRB13-12 | 40.4 | 49.9 |
SRB13-18 | 54.2 | 54.2 |
SRB13-24 | 68.0 | 68.0 |
